Freenove Breakout Board for ESP32 / ESP32-S3 WROVER WROOM, Terminal Block Shield HAT with Pin Header, 5V 3.3V Power Outputs, GPIO Status LED
Important Notes:
This product does NOT include ESP32 / ESP32-S3 board.
Overview:
This breakout board can help you wire and know the status of the GPIO.
Just plug Freenove ESP32 / ESP32-S3 board into this board to complete the installation.
We provide free technical support to help you with any questions and problems.
Compatible Models:
* Freenove ESP32-WROVER Board (FNK0060)
* Freenove ESP32-WROOM Board (FNK0090)
* Freenove ESP32-S3-WROOM Board (FNK0085)
* Freenove ESP32-S3-WROOM Board Lite (FNK0099)
Note: Not compatible with boards from other brands due to different pinout.
Main Features:
* Tutorial
  Comes with tutorial to show how to use. (Download needed, no paper tutorial.)
  You can download it before purchasing:
  http://freenove.com/fnk0091

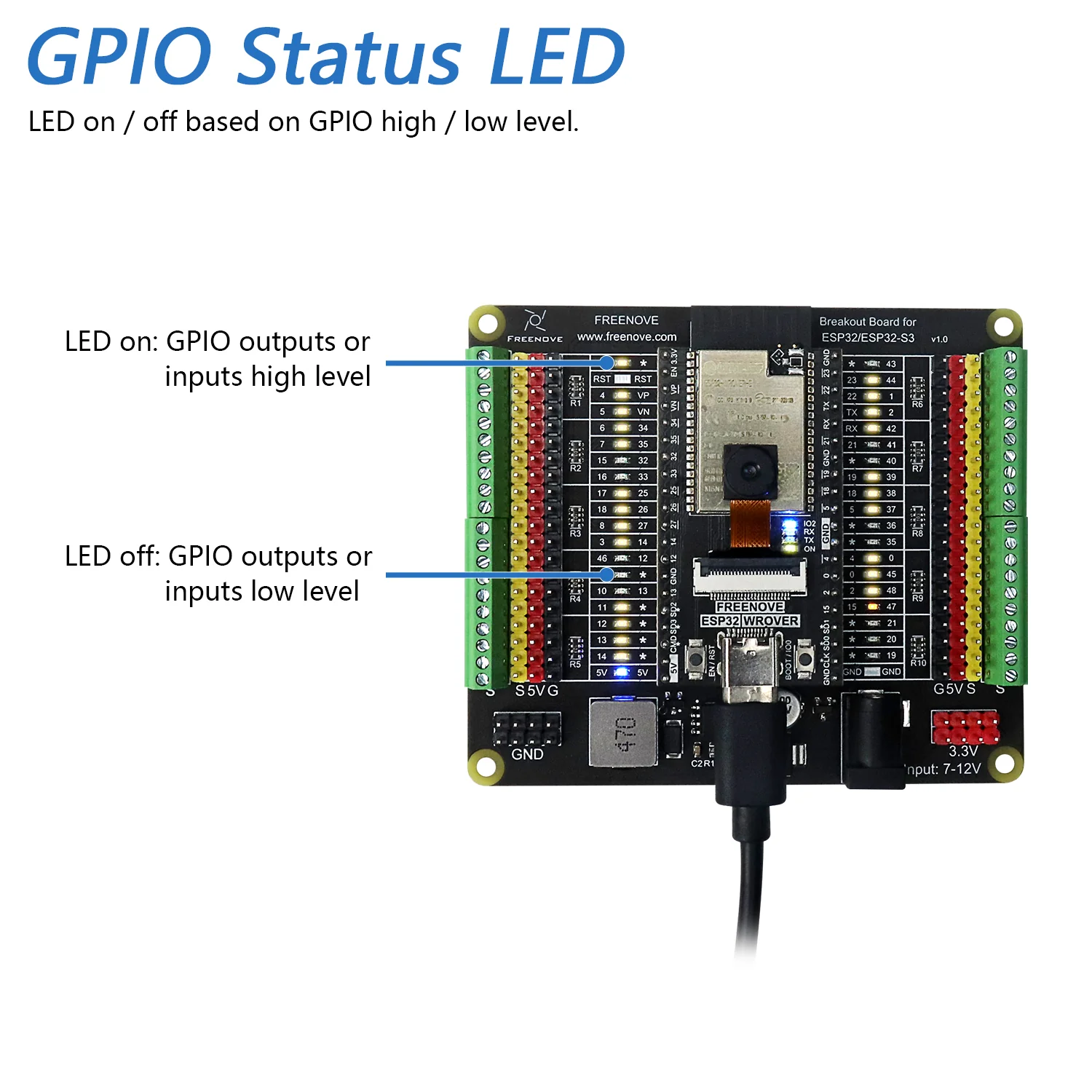

* GPIO status LED
  LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level.

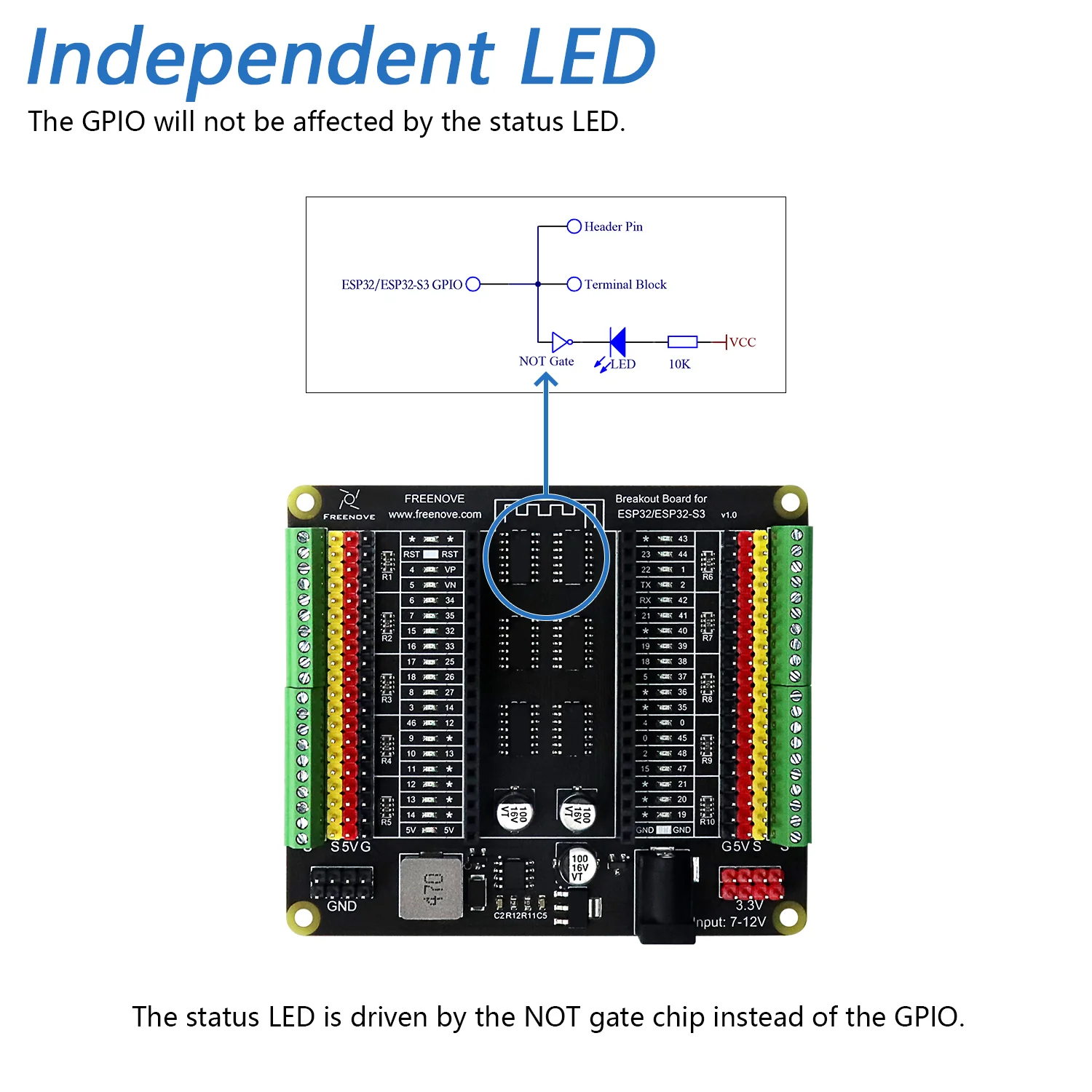

* Independent LED
  The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.

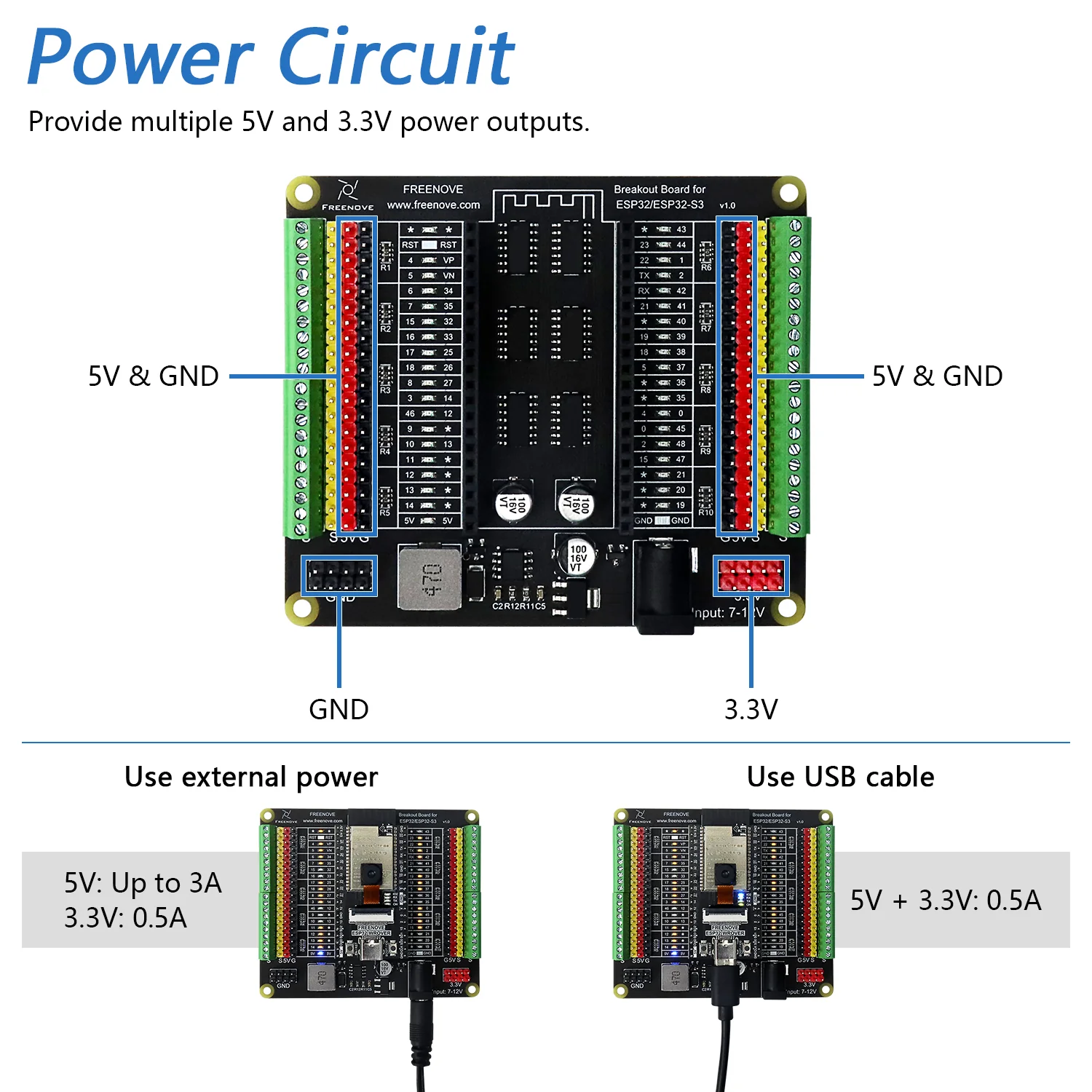

* Power circuit
  Provide multiple 5V and 3.3V power outputs. (5V output up to 3A with external power supply.)

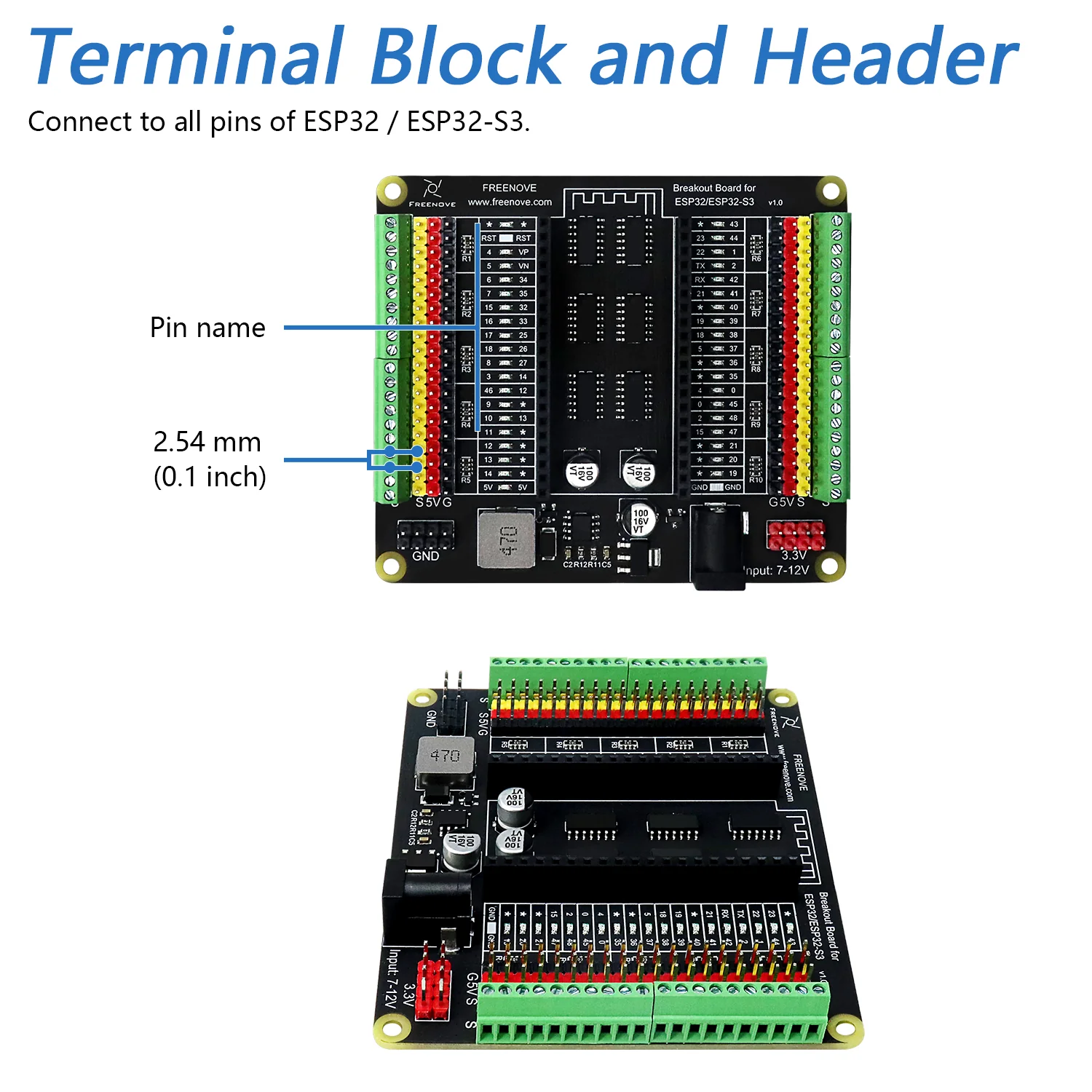

* Terminal block and header
  Connect to all pins of ESP32 / ESP32-S3, 2.54 mm (0.1 inch) pitch.

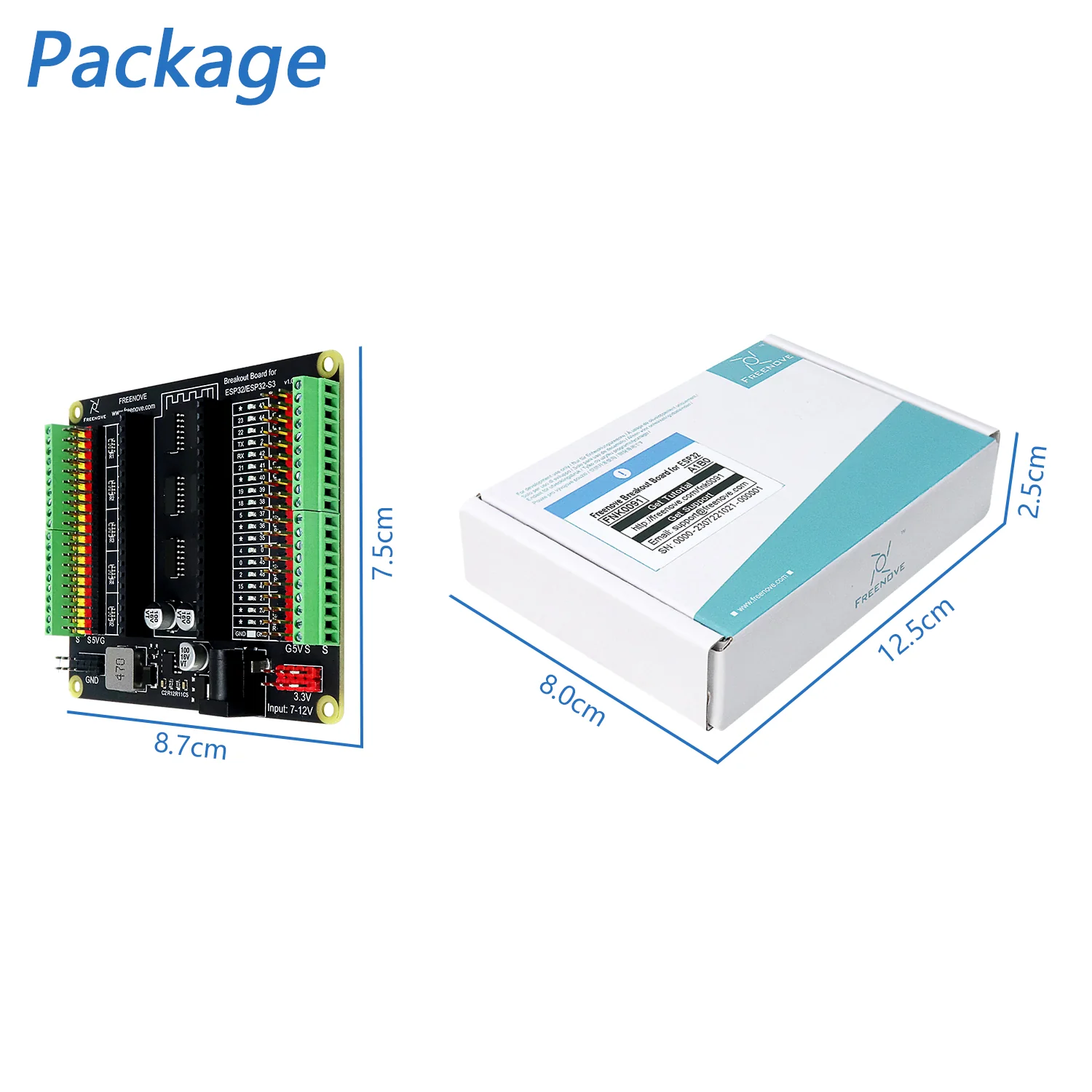

Package Includes:
1 x Breakout board
1 x Slotted screwdriver
